Ultrasound You Can See — Purpose-Built for Aviation Maintenance
FOTRIC acoustic imaging cameras pair dense MEMS digital microphone arrays with a 13 MP optical camera to visualize ultrasonic sound in real time. Pinpoint compressed air and bleed-air leaks, cabin pressurization losses, hydraulic and fuel line faults, and partial discharges on aviation ground-support electrical equipment — all with a handheld camera. Choose the model that fits your range, workflow, and budget.
Choose Your Acoustic Camera
Four cameras, one platform. Every FOTRIC acoustic camera in the ctrl.aero line delivers the same core detection capability — the difference is microphone density, detection range, and workflow features. Explore each model in depth below.
FOTRIC H4mini
Compact acoustic imaging — find leaks in seconds
Mics
112 MEMS microphones
Range
0.3 – 100 m
Key
770 g · IP54
- Handheld 770 g form factor
- Multiple image modes: single, multi, hologram
- On-device report generation
- Ideal for compressed air + tire + vacuum leaks

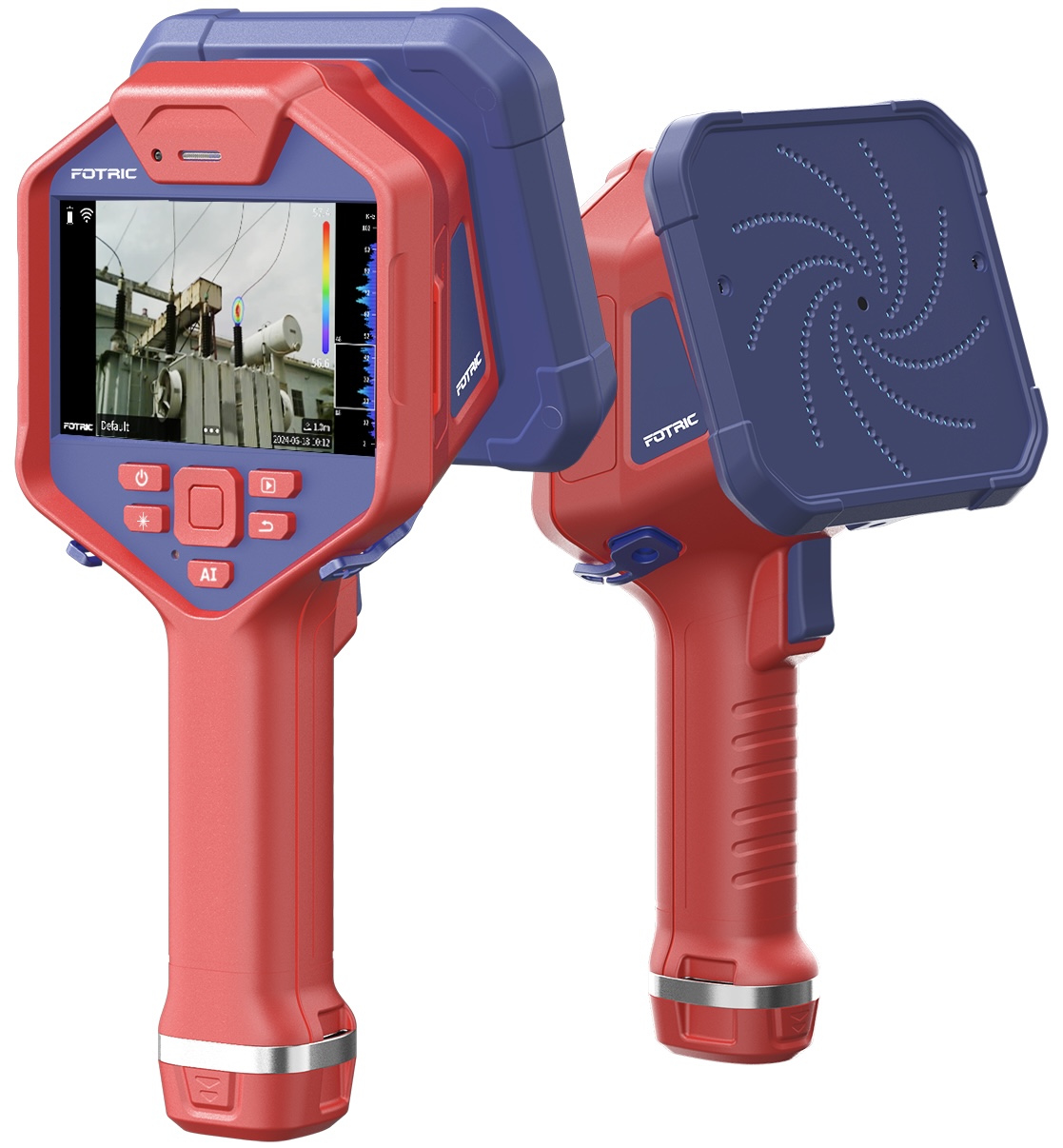

FOTRIC H-Series (H4 / H6)
High-performance dual-mode — leaks + partial discharge
Mics
Up to 162 MEMS microphones
Range
0.3 – 200 m
Key
1.3 kg · IP54
- Available as H4 (compact) or H6 (flagship)
- Dual LQ + PD detection modes
- PRPD diagrams with auto-classification
- AnalyzIR professional software
FOTRIC H-Flex
180° rotatable sensor array — ergonomic + arc-flash safe
Mics
162 MEMS microphones
Range
0.3 – 100 m
Key
NaviPdM® AI assistant
- Industry-first 180° rotatable array
- Inspect overhead + ground-level without bending
- Maintain >90 cm from energized components
- AI-powered NaviPdM® workflow
FOTRIC H7
Flagship long-range — 345 microphones, 300 m detection
Mics
345 MEMS microphones
Range
0.3 – 300 m
Key
NaviPdM® Venus AI
- Highest mic density in a handheld
- Long-range detection to 984 ft
- AI PD diagnosis + leak cost evaluation
- 6+ hour dual-battery runtime, dual-LED illumination
Field Validation
(FOTRIC H6) outperformed all of them (Fluke ii905 and TPI 9050). I love this thing. The form factor is amazing, but the picture/resolution is incredible. I don’t think I can go back to the other devices.
Price Advantage
See the FOTRIC H6 in the H-Series lineup or compare across the full range below.
Request a QuoteCompare Every Acoustic Camera
Every FOTRIC acoustic camera in the ctrl.aero line side-by-side. Pick the model that fits your range, workflow, and budget — then jump straight to the full product page.
| Model | |||||
|---|---|---|---|---|---|
| Best For | |||||
| Best for | Portable, one-handed leak surveys | Dual leak + PD inspections at a lower entry point | High-sensitivity leak + PD inspections | Ergonomic overhead + ground-level inspections | Long-range aviation + electrical inspections |
| Acoustic Sensor | |||||
| Microphone array | 112 MEMS | 112 MEMS | 162 MEMS | 162 MEMS | 345 MEMS |
| Working distance | 0.3 – 100 m | 0.3 – 200 m | 0.3 – 200 m | 0.3 – 100 m | 0.3 – 300 m |
| Frequency range | 2 – 100 kHz | 2 – 100 kHz | 2 – 100 kHz | 2 – 100 kHz | 2 – 100 kHz |
| Acoustic FOV | 66° × 52° | 66° × 52° | 66° × 52° | 66° × 52° | 66° × 52° |
| Array rotation | Fixed | Fixed | Fixed | 180° rotatable (stepless) | Fixed |
| Detection & Diagnostics | |||||
| Detection modes | Leak mode (level display) | LQ (leak) + PD (PRPD) | LQ (leak) + PD (PRPD) | LQ (leak) + PD (PRPD) | LQ (leak) + PD (PRPD) |
| Leak cost evaluation | — | Auto + annual cost | Auto + annual cost | Auto + annual cost | AI auto + annual cost |
| Partial discharge diagnosis | — | Auto: surface / floating / corona | Auto: surface / floating / corona | Auto: surface / floating / corona | AI auto-diagnosis + severity |
| NaviPdM® AI assistant | — | — | — | NaviPdM® AI Assistant | NaviPdM® Venus AI |
| Camera & Display | |||||
| Display | 3.5" IPS LCD (640 × 480) | 5" Gorilla LCD (1280 × 720) | 5" Gorilla LCD (1280 × 720) | 5" Gorilla LCD (1280 × 720) | 5" Gorilla LCD (1280 × 720) |
| Digital camera | 13 MP industrial | 13 MP industrial | 13 MP industrial | 13 MP industrial | 13 MP industrial |
| Reporting & Software | |||||
| On-device reports | Acoustic image reports (on-device) | Word / PDF on-device | Word / PDF on-device | Word / PDF on-device | Word / PDF on-device |
| Analysis software | — | AnalyzIR | AnalyzIR | AnalyzIR | AnalyzIR |
| Power & Ruggedness | |||||
| Battery | 3.6 V, 5000 mAh Li-ion | 7.4 V, 3500 mAh Li-ion (2 packs) | 7.4 V, 3500 mAh Li-ion (2 packs) | 3.6 V, 9900 mAh Li-ion | 7.4 V, 3500 mAh Li-ion (2 packs) |
| Battery runtime | ≥ 4 h continuous | ≥ 4 h per pack | ≥ 4 h per pack | ≥ 4 h continuous | ≥ 6 h combined |
| Enclosure rating | IP54 | IP54 | IP54 | IP54 | — |
| Physical | |||||
| Weight | 770 g (1.70 lb) | 1.3 kg (2.86 lb) | 1.3 kg (2.86 lb) | — | — |
| Dimensions | 243 × 95 × 150 mm | 175 × 151 × 95 mm | 175 × 151 × 95 mm | — | — |
| Service | |||||
| Recommended calibration | — | 2 years | 2 years | — | — |
| Warranty | — | 2 years | 2 years | — | — |
Specifications from FOTRIC product datasheets. Contact ctrl.aero for current pricing, availability, and calibration options.
Which Boeing tasks call out an acoustic camera?
Pick your airplane model to see the Boeing AMM tasks that call out tool tag COM-18702 (Digital Camera – Acoustic). FOTRIC H-Series imagers are offered as approved equivalents under airline tool-equivalency programs.
Additional model coverage pending Boeing tool-details review. Only tasks confirmed from the Boeing AMM are listed here.
Adoption requires the operator's own Part 145 tool-equivalency documentation and quality-organization sign-off. Task numbers vary by minor model and revision — always follow your operator's current AMM / FIM.
1 task for Boeing 737-600 / -700 / -800 / -900
Ultrasonic leak detection
- AMM20-10-79-270-801Ultrasonic Leak Detection Checks — acoustic digital camera (COM-18702) recommended alongside the SPL-1473 ultrasonic probe for cabin pressurization, A/C, bleed air, hydraulic bypass, parking brake, pitot-static, oxygen and pressurized-component leak checks
Aviation Maintenance Applications
Every FOTRIC acoustic camera in the ctrl.aero line is engineered for the demanding acoustic environments of aviation MRO — from the ramp to the hangar electrical room.
